BCN3D EPSILON W50 SC

The Epsilon W50 SC is a powerful professional 3D printing solution, designed to deliver large-scale parts with industrial-grade materials, thanks to features such as its passive heated chamber, full enclosure, and humidity-controlled environment.

Powered by our Independent Dual Extruder (IDEX) system, the Epsilon W50 delivers exceptionally strong functional parts with quality and precision, while the Smart Cabinet (SC) boosts your printers’ performance, keeping your materials in optimal condition and significantly improving each print’s quality.

10.495€ // 11.995$ *Excl. VAT
Delivery time: 24-48 hours

h
Already trusted by 15,000+ engineers and designers

Main features

  • IDEX Technology Double your productivity with the Independent Dual Extrusion System.
  • Industry Ready Materials Print from plastics to composites and metals. All using the same printer.
  • Massive Print Volume Create big robust parts with solid mechanical properties.
  • Automatic XYZ Calibration Reduce downtime. Focus on printing.

BCN3D Packs

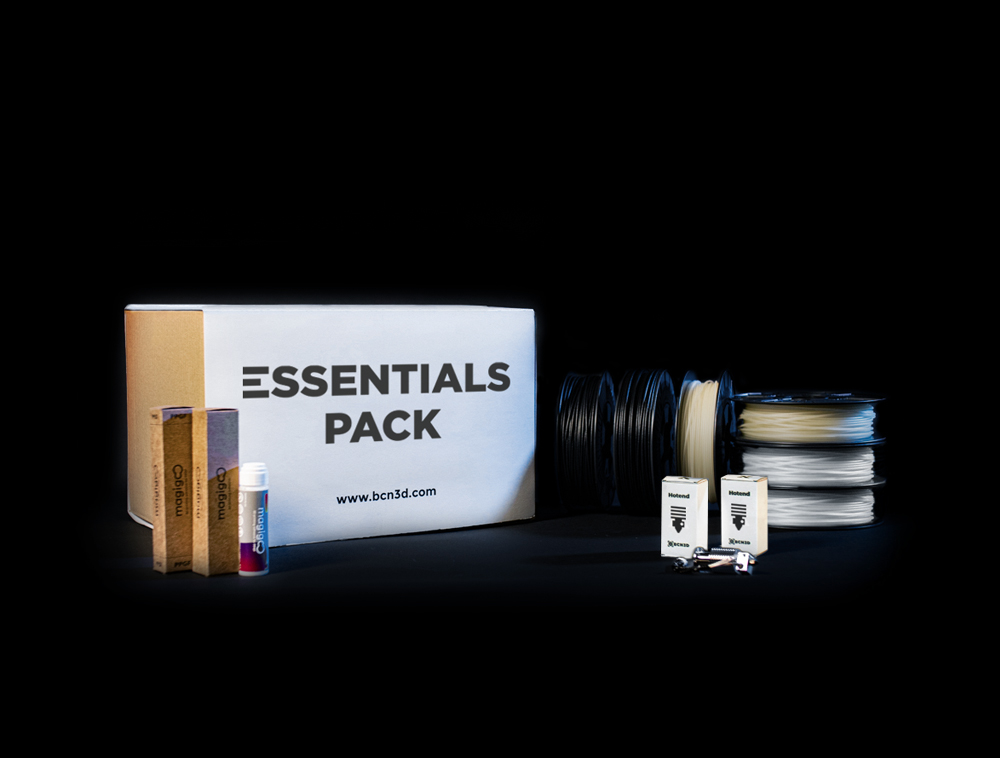

  • Essentials Pack

    The Essentials Pack is the perfect way to kickstart your 3D printing journey with your BCN3D Epsilon 3D printer. This pack includes a selection of spools of filaments in various materials (PLA, ABS and BVOH), allowing you to experiment and find the best one for your applications. The pack also includes a Hotend with a 0.6mm nozzle size, allowing you to print more resistant parts or print quicker. With the Essentials Pack, you can confidently explore the possibilities of 3D printing and take your skills to the next level.

    About the Essential Pack

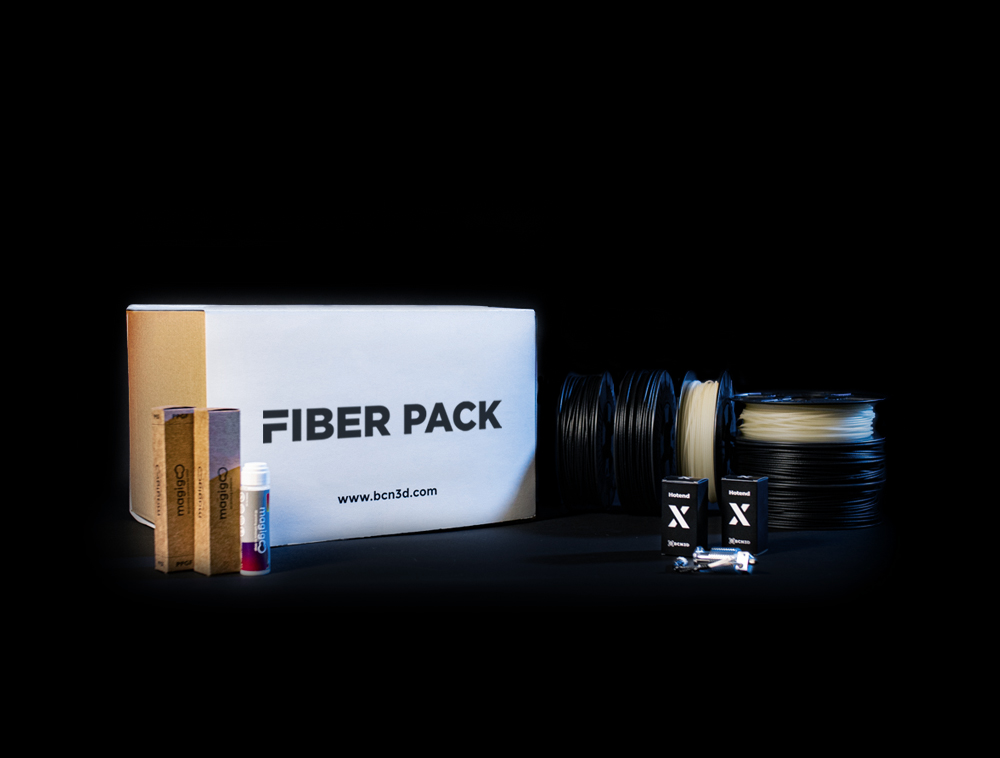

  • Fiber pack

    By bundling the Epsilon with the BCN3D Fiber Pack, you'll be able to print not only thermoplastics, but also fiber-filled filaments and achieve elite mechanical properties. This pack has all you could ever need for printing with fiber-filled materials, with a trio of materials accompanied by specially designed hotends and consumables. We strongly recommend using this pack together with the Smart Cabinet (SC) on your Epsilon to keep the filaments in optimal humidity conditions.

    About the Fiber Pack

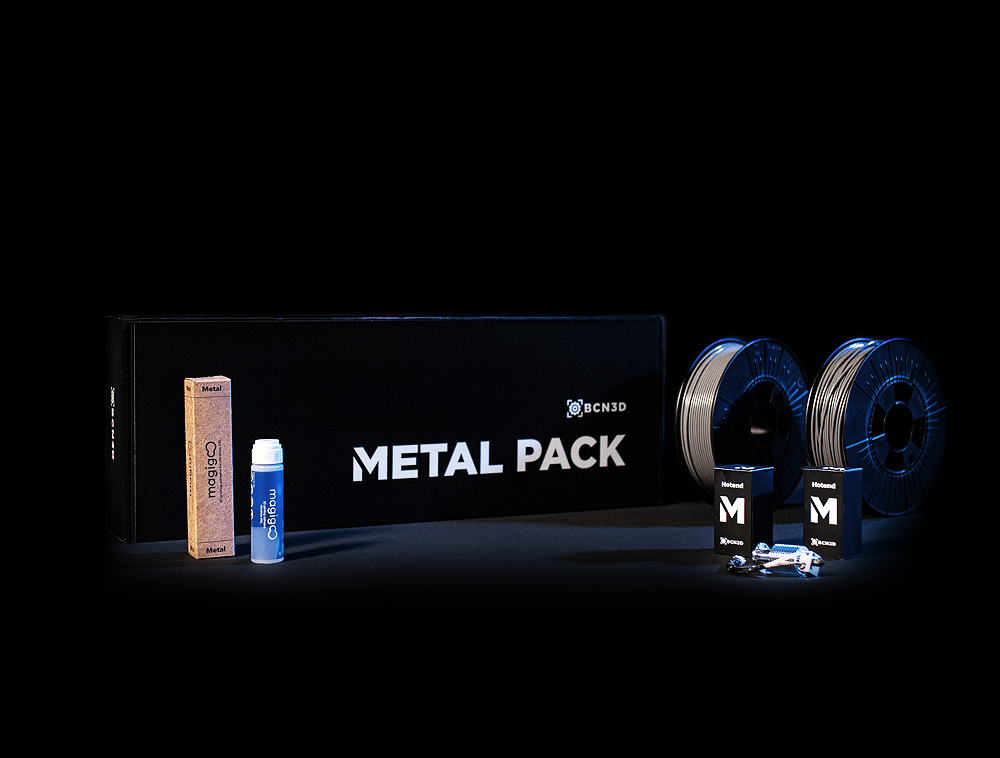

  • Metal Pack

    By bundling the Epsilon with the BCN3D Metal Pack, you'll be able to print not only thermoplastics, but also metal-filled filaments. The parts produced by this process have practically identical behavior to those produced by MIM or CNC and offer an office-friendly solution with far more design freedom. The pack includes both 316L and 17-4 PH accompanied by an exclusive hotend for metal and consumables. After printing, debinding and sintering processes can be carried out externally through the current Forward AM authorized network of service suppliers.

    About the Metal Pack

    • Essentials Pack
      The Essentials Pack is the perfect way to kickstart your 3D printing journey with your BCN3D Epsilon 3D printer. This pack includes a selection of spools of filaments in various materials (PLA, ABS and BVOH), allowing you to experiment and find the best one for your applications. The pack also includes a Hotend with a 0.6mm nozzle size, allowing you to print more resistant parts or print quicker. With the Essentials Pack, you can confidently explore the possibilities of 3D printing and take your skills to the next level.

      About the Essential Pack

    • Fiber pack
      By bundling the Epsilon with the BCN3D Fiber Pack, you'll be able to print not only thermoplastics, but also fiber-filled filaments and achieve elite mechanical properties. This pack has all you could ever need for printing with fiber-filled materials, with a trio of materials accompanied by specially designed hotends and consumables. We strongly recommend using this pack together with the Smart Cabinet (SC) on your Epsilon to keep the filaments in optimal humidity conditions.

      About the Fiber Pack

    • Metal Pack
      By bundling the Epsilon with the BCN3D Metal Pack, you'll be able to print not only thermoplastics, but also metal-filled filaments. The parts produced by this process have practically identical behavior to those produced by MIM or CNC and offer an office-friendly solution with far more design freedom. The pack includes both 316L and 17-4 PH accompanied by an exclusive hotend for metal and consumables. After printing, debinding and sintering processes can be carried out externally through the current Forward AM authorized network of service suppliers.

      About the Metal Pack

    Industrial power
    on your workbench.

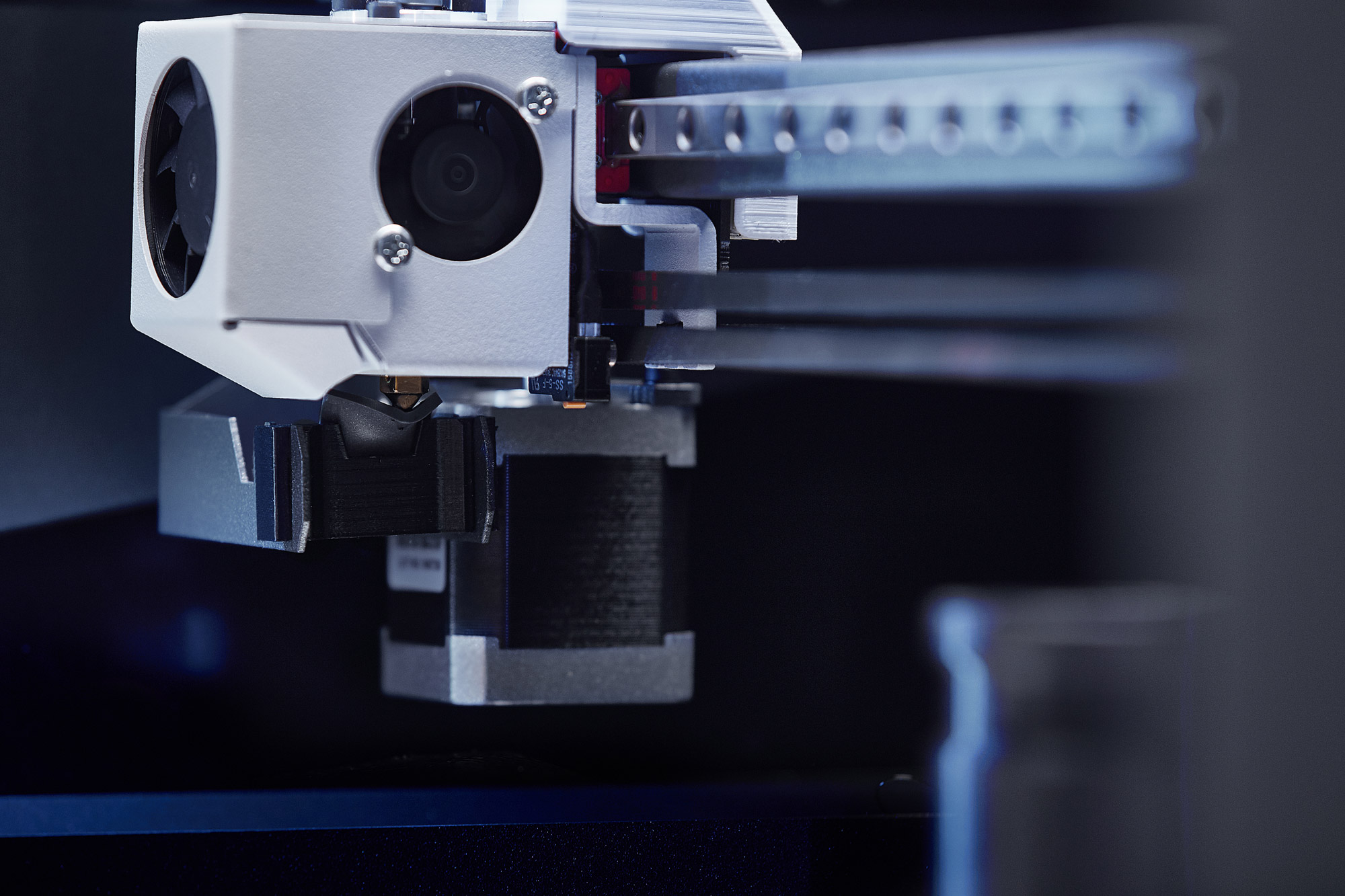

    Developed by BCN3D, the disruptive Independent Dual Extrusion System technology makes the difference in 3D printing.

    • Duplication Mode

      A setting that prints identical models simultaneously, doubling the production capacity.

    • Mirror Mode

      A mode that enables printing mirrored designs symmetrically and speeds up iteration.

    • Soluble Supports Mode

      A process that prints soluble parts to create intricate structures and avoid geometric limitations.

    • Multimaterial Mode

      A technique that makes it possible to print two different materials and combine their properties.

      • Duplication mode

        Duplication Mode

        A setting that prints identical models simultaneously, doubling the production capacity.

      • Mirror Mode

        Mirror Mode

        A mode that enables printing mirrored designs symmetrically and speeds up iteration.

      • Soluble Supports Mode

        Soluble Supports Mode

        A process that prints soluble parts to create intricate structures and avoid geometric limitations.

      • Multimaterial Mode

        Multimaterial Mode

        A technique that makes it possible to print two different materials and combine their properties.


      Massive print volume

      Epsilon W50

      Volume: 50 Liters

      Epsilon W27

      Volume: 27 Liters

      Epsilon W50

      Volume: 50 Liters

      Massive print volume

      420
      Length
      300
      Width
      400
      Height
      16.53
      Length
      11.81
      Width
      15.75
      Height

      Epsilon W27

      Volume: 27 Liters

      Industry Ready Materials

      Print from plastics to composites and metals with the industrial-grade BCN3D Filaments, developed by renowned chemical companies BASF and Mitsubishi Chemical, and thanks to our Open Filament System, work confidently with any third-party material of your choice.

      Material Selector: A Magical Way to Find a Fitting Material For Your Application

      • Standard PLA / PET-G / TPU / BVOH
      • Technical ABS / PP / PA
      • Composites PP GF30 / PAHT CF15 / PET CF15
      • Metal 316L / 17-4PH

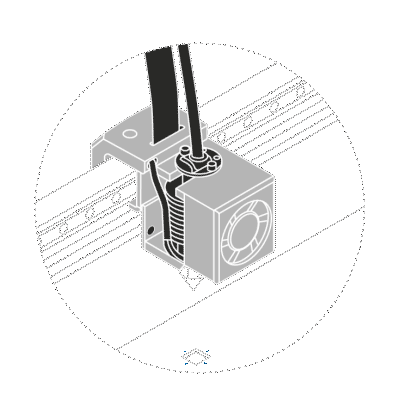

      Automatic XYZ Calibration

      The autocalibration system incorporated in the BCN3D Epsilon calibrates the entire printer in less than 6 minutes by measuring multiple points to automatically adjust the printing surface height and (XY) offset between both nozzles. Always obtain a perfect first layer, without any user intervention needed.

      SMART CABINET

      The Smart Cabinet completes the Epsilon ecosystem, offering seamless integration with your BCN3D Epsilon printers and boosting their performance. Its filament humidity control keeps your materials in optimal condition, and its uninterruptible power supply protects your work at all times, avoiding the risk of losing your print job due to power outages.

      *The Smart Cabinet is included in the SC bundles. It can also
      be purchased separately.

      Learn more

      • Protection

        Protect your equipment and your work against power outages thanks to the Uninterruptible Power Supply (UPS). In the event of a blackout of up to 10 minutes, this technology will enable the 3D printer to automatically resume the printing process once the power is back. In case of a longer outage, the UPS will save the printer’s last position, so that you can manually resume the printing process at any time.
      • Fit them all

        Depending on the configuration chosen, the dehumidifier can fit up to 10 small spools (width up to 55mm), 4 big spools (weight up to 2,5kg), or 6 BCN3D Spool Cartridges -or a combination of them! Arrange your filaments in the most convenient way according to your needs, and reduce the need for loading and unloading processes.
      • Integration

        Full 3D printing solution. The Smart Cabinet integrates with your 3D printers, materials, and software, streamlining your workflow thanks to its fast and easy loading of up to eight filament spools and its wheeled structure, which enables effortless transportation across your facilities.

      Key features

      Bondtech™ Extruders

      This extruder features high-tech dual drive gears by Bondtech™, offering more control, sharper details, and superior performance for any type of filament.

      Filament Runout Sensor

      A job-saving sensor that detects when the filament is finished and pauses the printing process until it is reloaded again.

      Hotends

      The hotends have been carefully designed to deliver the smoothest and most reliable extrusion.

      Heated bed up to 120ºC

      The BCN3D Epsilon Series is equipped with a heated bed that can reach up to 120ºC, ideal to print with engineering-grade materials and avoid warping issues.

      BCN3D Epsilon 3D Printing Technology Heat bed Key Features

      Multilingual 5’’ touchscreen

      The BCN3D Epsilon Series is equipped with a multilingual intuitive interface that guides you through its advanced features. Supported languages: German, English, Spanish, French, Italian, Japanese, Portuguese, Chinese.

      Metal frame

      Sturdy aluminum and steel frame for guaranteed strength and durability on your workfloor.



      BCN3D Epsilon 3D Printing Technology Aluminium frame Key Features

      Autocalibration

      The autocalibration system incorporated in the BCN3D Epsilon calibrates the entire printer in less than 6 minutes by measuring multiple points to automatically adjust the printing surface height and (XY) offset between both nozzles. Always obtain a perfect first layer, without any user intervention needed.



      Epsilon series technical specifications

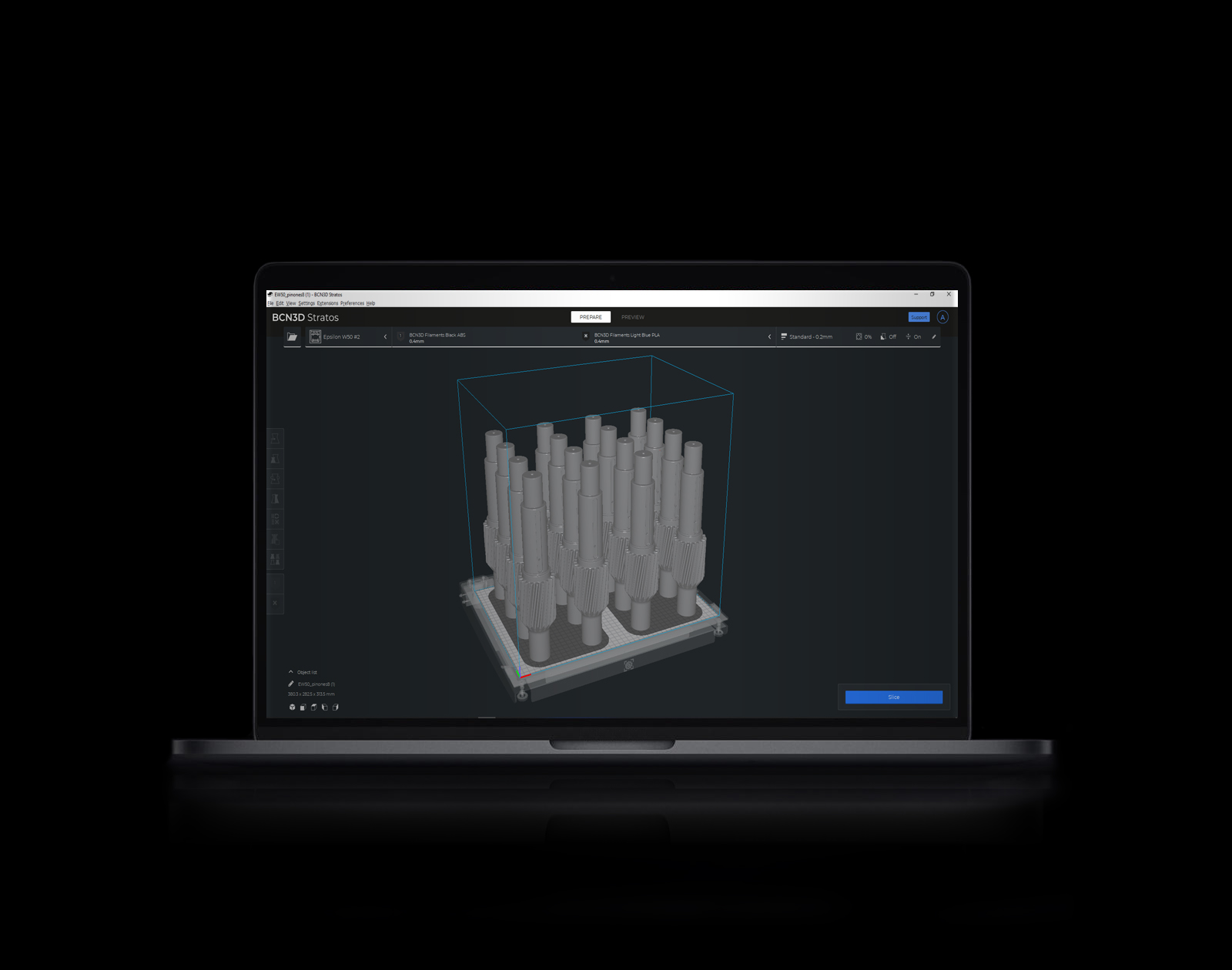

      • BCN3D Stratos

        BCN3D Stratos is a straighforward slicing software, designed for speed and efficiency while still ensuring top-quality prints for a powerful 3D printing process. The user-friendly interface is free and compatible with all BCN3D Sigma and Epsilon printers.

        More information

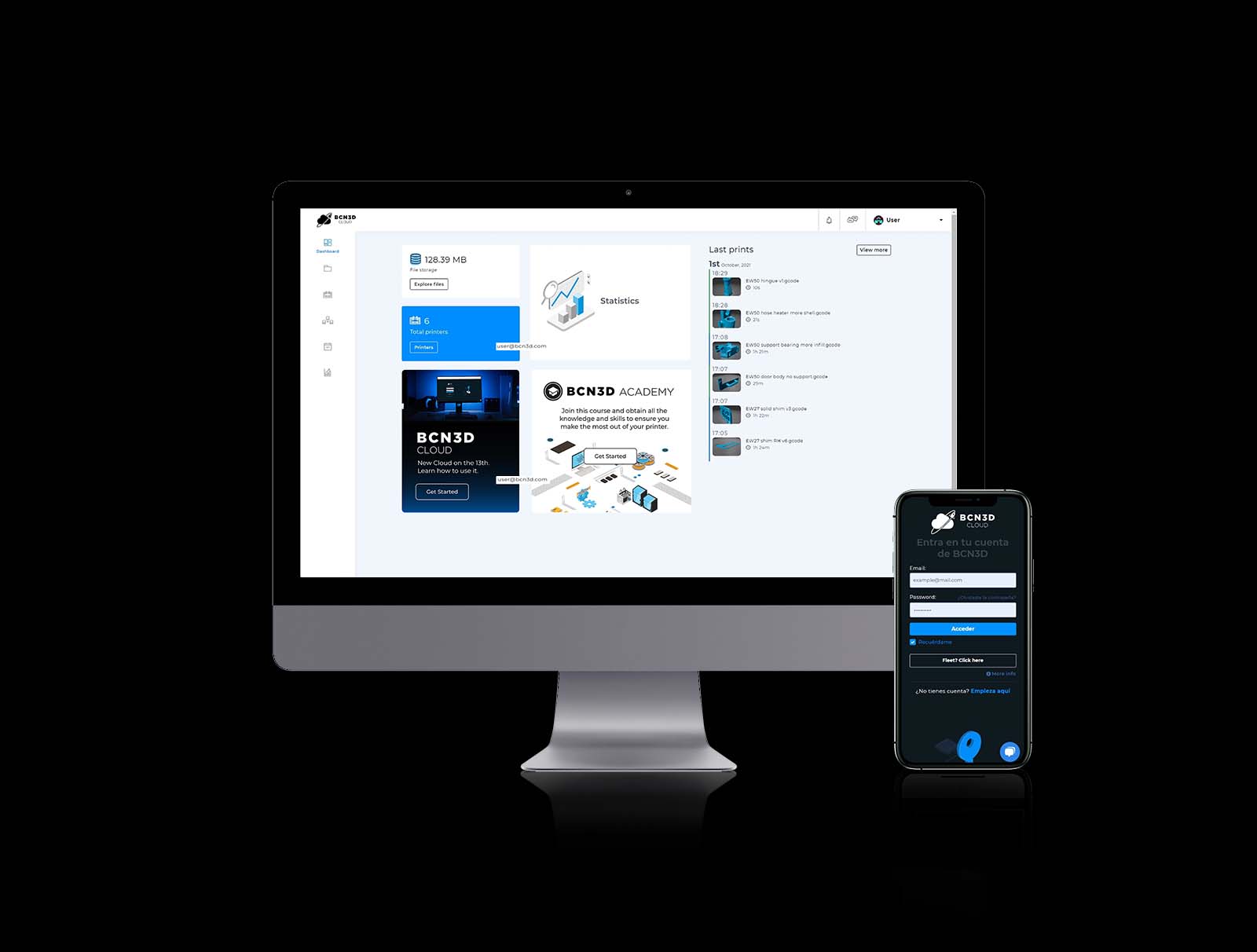

      • BCN3D Cloud

        The BCN3D Epsilon 3D printers are equipped with the latest connectivity features. Easily send your print files when connected to the network for a hassle-free workflow with our BCN3D Cloud platform. And forget about manual firmware upgrades thanks to Over The Air (OTA) updates, who will ensure that your printer is always up to date (activated on demand).

        More information

        • BCN3D Stratos

          BCN3D Stratos is a straighforward slicing software, designed for speed and efficiency while still ensuring top-quality prints for a powerful 3D printing process. The user-friendly interface is free and compatible with all BCN3D Sigma and Epsilon printers.

          More information

        • BCN3D Cloud

          The BCN3D Epsilon 3D printers are equipped with the latest connectivity features. Easily send your print files when connected to the network for a hassle-free workflow with our BCN3D Cloud platform. And forget about manual firmware upgrades thanks to Over The Air (OTA) updates, who will ensure that your printer is always up to date (activated on demand).

          More information

        • Knowledge base

          An ever-expanding repository of tips and tricks sourced directly from our 3D printing specialists.

          Learn more

        • BCN3D Academy

          With this online course, you will obtain all the knowledge and necessary skills to make the most out of your printer.

          Learn more

        • Support service

          Get human service when you need it from a BCN3D expert. Our support team will make sure you take the most out of your printer.

          Learn more

          • Knowledge base

            An ever-expanding repository of tips and tricks sourced directly from our 3D printing specialists.

            Learn more

          • BCN3D Academy

            With this online course, you will obtain all the knowledge and necessary skills to make the most out of your printer.

            Learn more

          • Support service

            Get human service when you need it from a BCN3D expert. Our support team will make sure you take the most out of your printer.

            Learn more



          Technology FFF (Fused Filament Fabrication)
          Architecture IDEX (Independent Dual Extruder system)
          Printing volume W50: 420x300x400mm / W27: 420x300x220mm
          Filament diameter 2,85mm
          Hotends (mm) 0,4 (Default) / 0,6 / 0,8 / 1,0 / X 0,6 / M 0,4
          Calibration System XYZ Full Automatic Calibration
          Materials BCN3D certified profiles for BCN3D Filaments / Open filament system
          Connectivity Offline printing: SD card / Online printing: Wifi or Ethernet
          Certificates CE / FCC
          Smart Cabinet (SC) Humidity-controlled environment / Uninterruptible power supply (UPS)
          Slicer BCN3D Stratos
          Cloud BCN3D Cloud (Library, Queues, roles and permissions, statistics)
          Extrusion system Bondtech high-tech dual drive gears
          Warranty 1 year (for extended warranty, check out the service plans)

          • HEPA filter

            The BCN3D Epsilon printers are equipped with a HEPA filter, which protects your working environment from potentially harmful particles when printing with industrial materials.

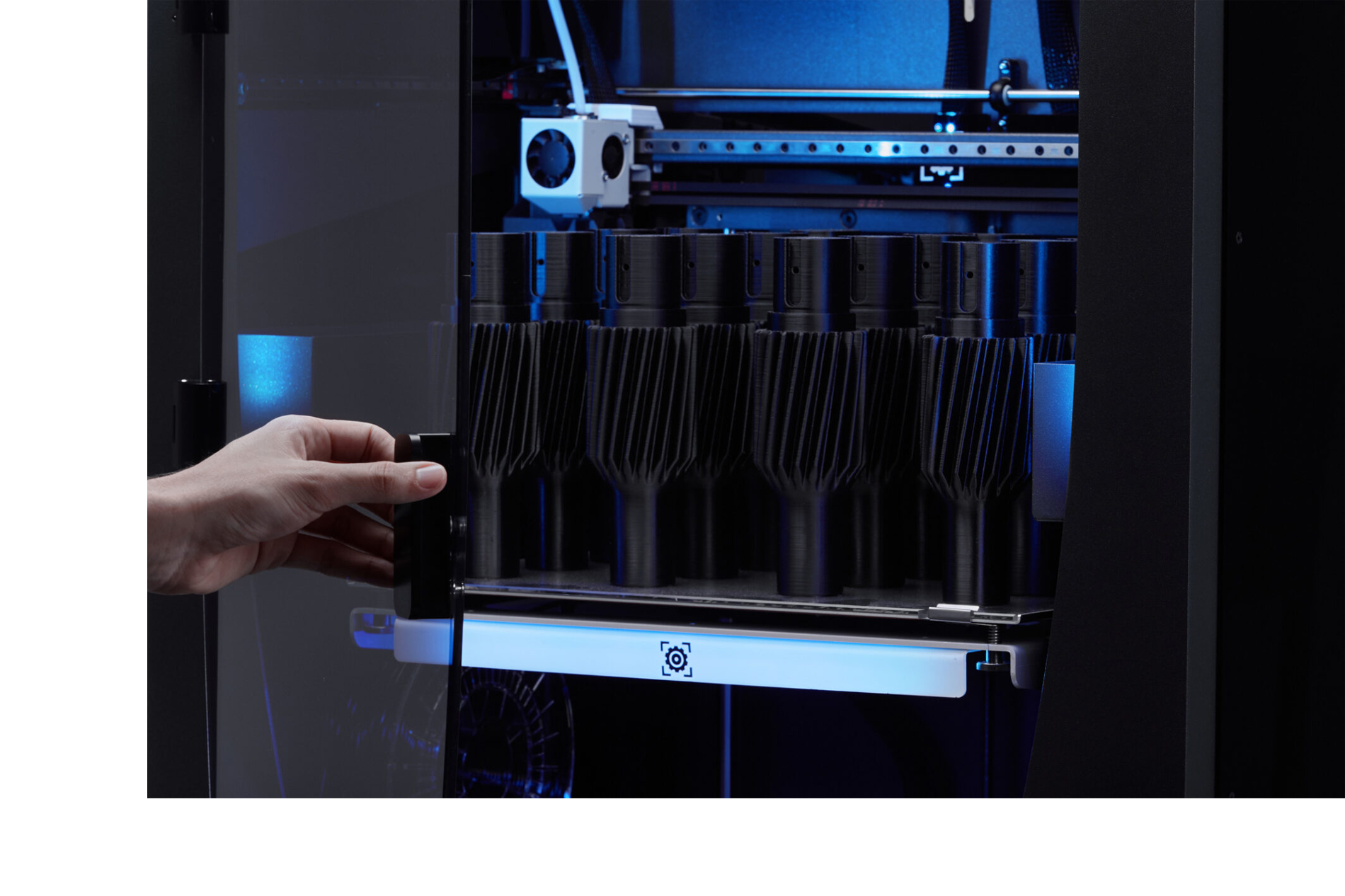

          • Safety pause

            The Safety Pause feature will stop the printing process every time the enclosure door is opened, so that your experience will be fully safe through and through.

          • CARBON filter

            The carbon filter on the BCN3D Epsilon printers shields your environment from any potentially harmful fumes produced by the materials used.

            • HEPA filter

              The BCN3D Epsilon printers are equipped with a HEPA filter, which protects your working environment from potentially harmful particles when printing with industrial materials.

            • Safety pause

              The Safety Pause feature will stop the printing process every time the enclosure door is opened, so that your experience will be fully safe through and through.

            • CARBON filter

              The carbon filter on the BCN3D Epsilon printers shields your environment from any potentially harmful fumes produced by the materials used.

            • Epsilon Support Plans

              The Epsilon Support Plans are designed to provide better customer satisfaction, improved ROI and reduced downtime. The plans are available  in the form of either a 1 year, 2 year or 3 year term. The 1 year plan runs alongside our standard 12 month warranty.

              The 2nd and 3rd year plans include an extension of the warranty. Contents of the Epsilon Support Plan: Priority email & online chat support (response time less than 24h), access to a dedicated support phone line (08:30 – 17:30 CET), 1 hour call with BCN3D Applications Engineer (1 month after installation), BCN3D Maintenance Kit and Extended Warranty (on 2nd and 3rd Year Plans).

              Learn more

              • Epsilon Support Plans

                The Epsilon Support Plans are designed to provide better customer satisfaction, improved ROI and reduced downtime. The plans are available  in the form of either a 1 year, 2 year or 3 year term. The 1 year plan runs alongside our standard 12 month warranty.

                The 2nd and 3rd year plans include an extension of the warranty. Contents of the Epsilon Support Plan: Priority email & online chat support (response time less than 24h), access to a dedicated support phone line (08:30 – 17:30 CET), 1 hour call with BCN3D Applications Engineer (1 month after installation), BCN3D Maintenance Kit and Extended Warranty (on 2nd and 3rd Year Plans).

                Learn more

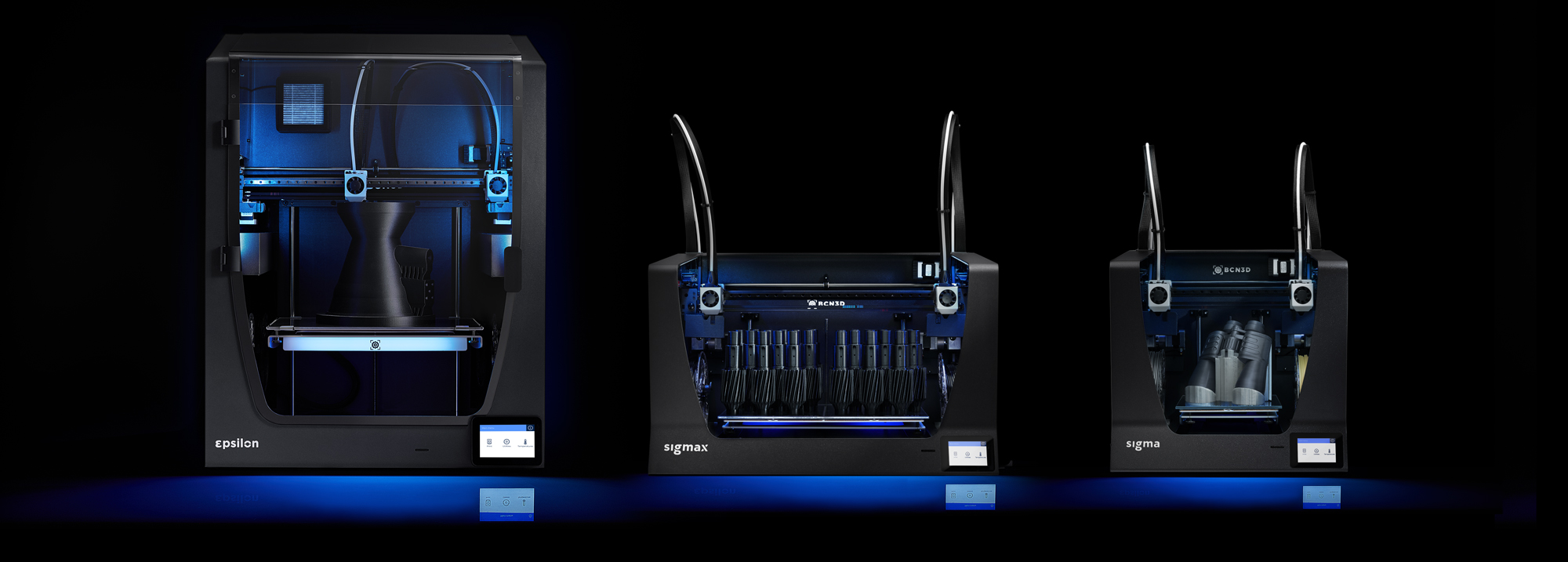

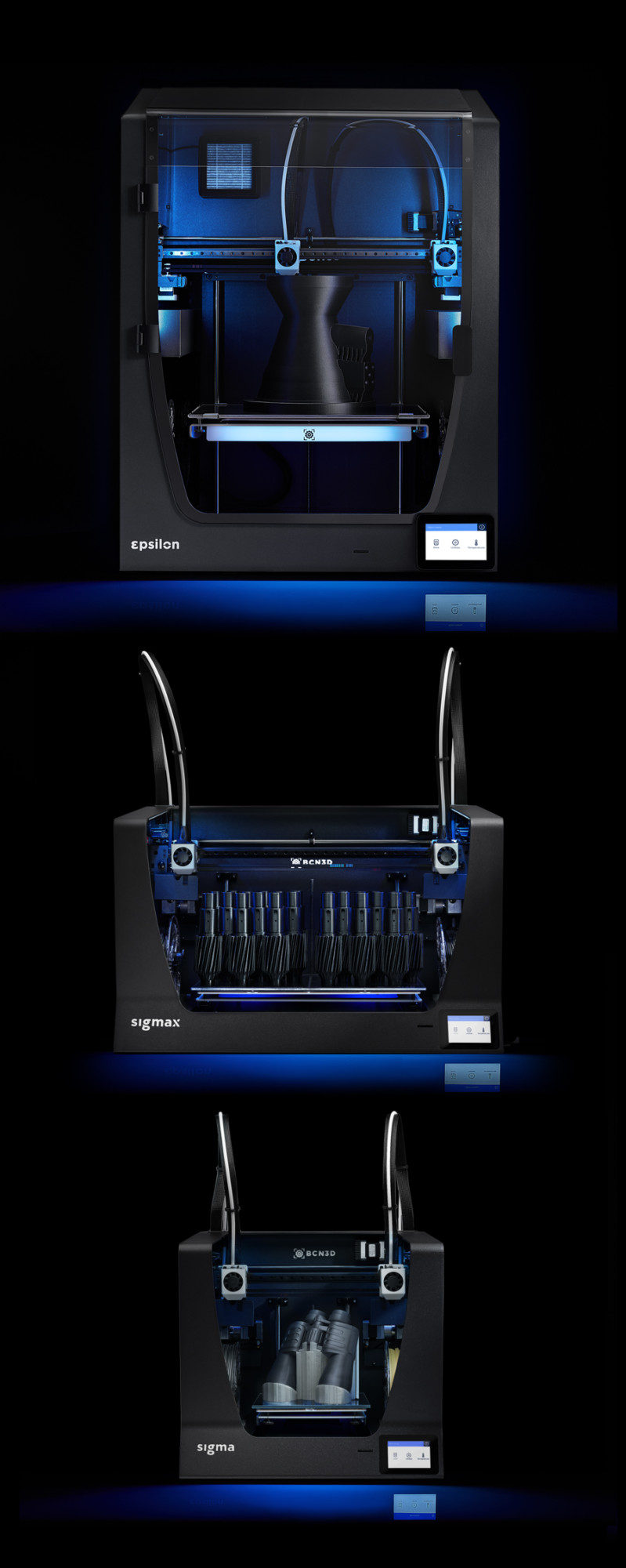

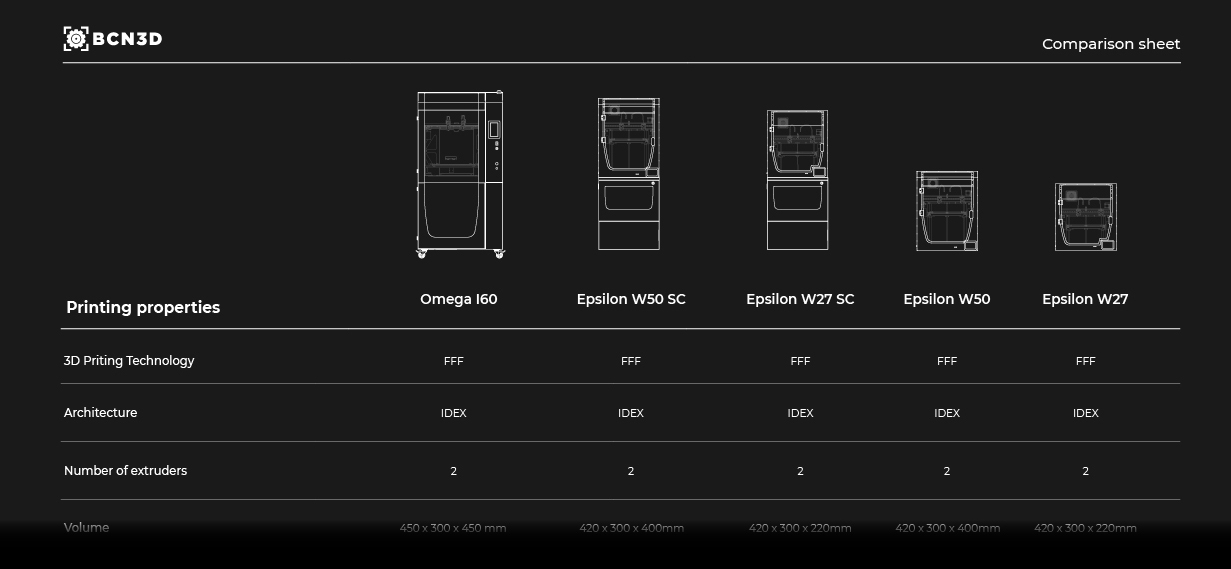

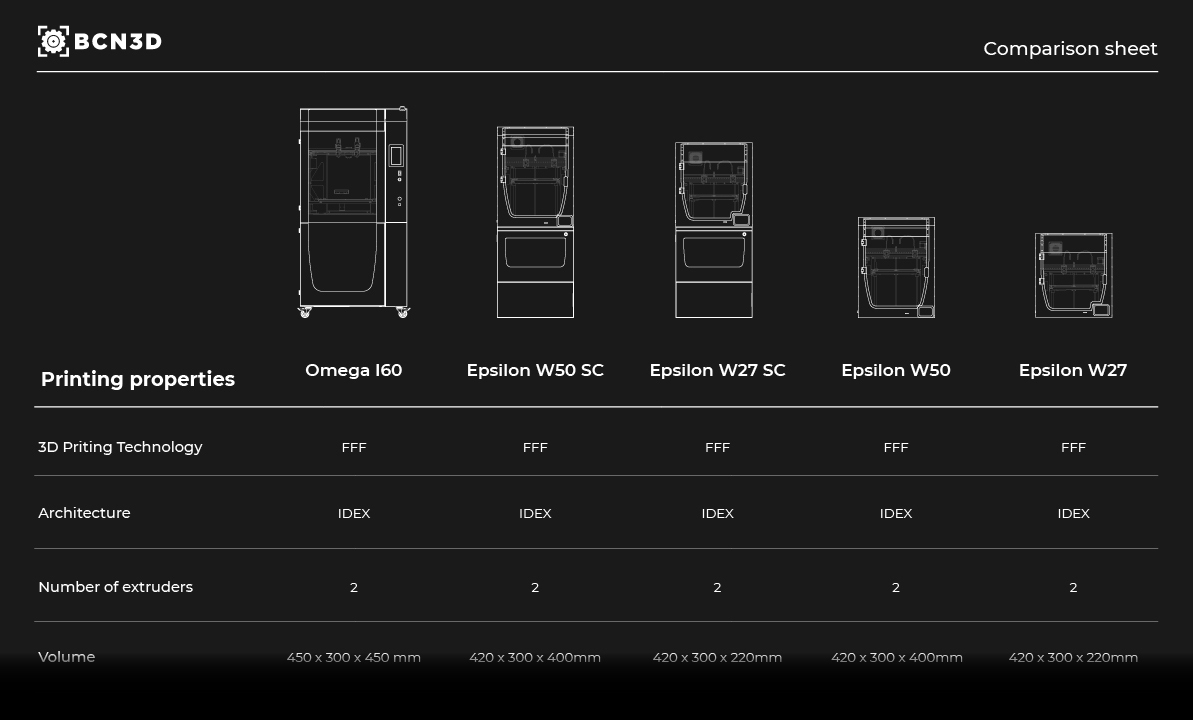

              Compare BCN3D 3D Printers
