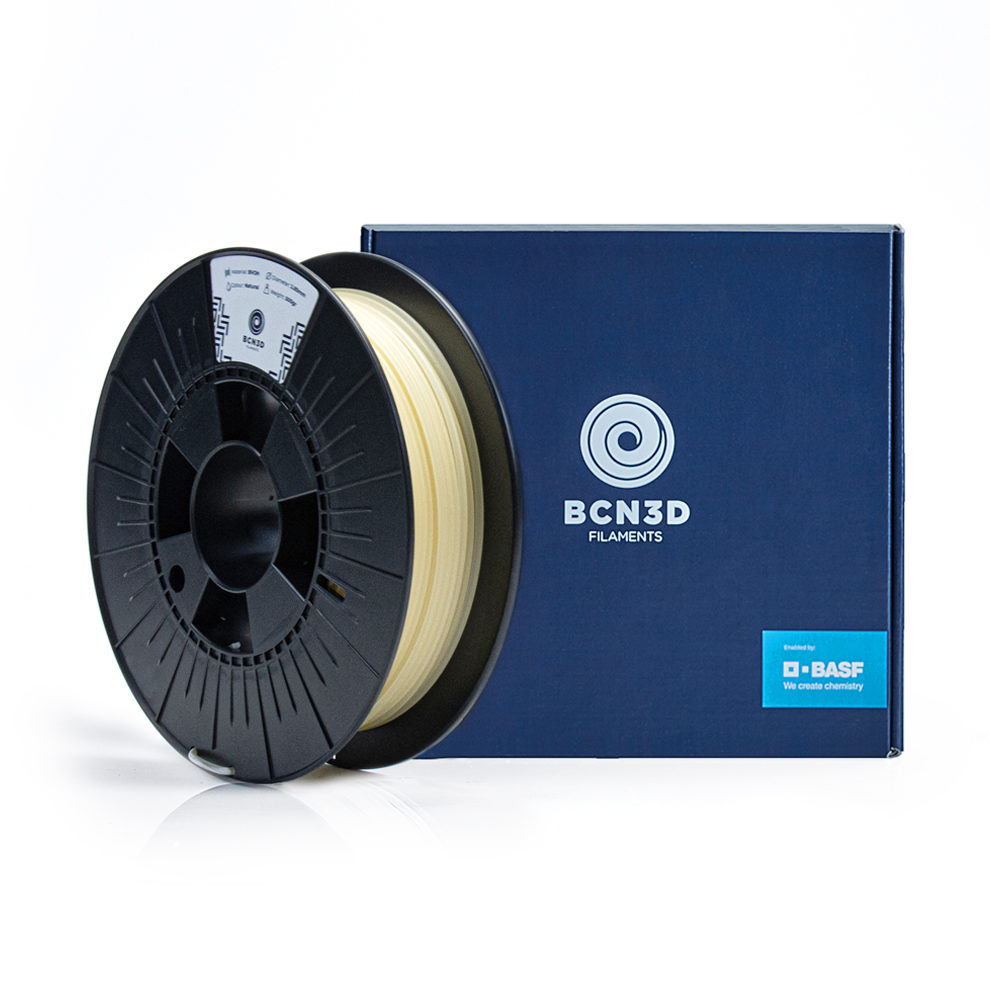

BVOH | BCN3D Filaments

BVOH BCN3D Filaments

Hidrosoluble / Support material / Wide compatibility

55,95€

BVOH (Butenediol vinyl alcohol copolymer) is a water-soluble thermoplastic optimized for the FFF manufacturing process. Our BVOH extends the compatibility with most of BCN3D filaments and can be easily printed to create the support and then dissolved with ordinary water. In comparison with PVA, BVOH supports allow to achieve better surface quality, to orientate the part to get better mechanical properties and even to print multi-component models and mechanisms with a fastest dissolution and easier to remove.

Overview

BVOH (Butenediol vinyl alcohol copolymer) is a water-soluble thermoplastic optimized for the FFF manufacturing process. Our BVOH extends the compatibility with most of BCN3D filaments and can be easily printed to create the support and then dissolved with ordinary water. In comparison with PVA, BVOH supports allow to achieve better surface quality, to orientate the part to get better mechanical properties and even to print multi-component models and mechanisms with a fastest dissolution and easier to remove.

Compatibility: Find out the BCN3D printers and filaments compatibility

Applications

  • Water-soluble supports for partially enclosed cavities and complex geometries
  • Smooth finish on functional prototypes
  • Sacrificial molds
  • Movable mechanisms
  • Hollow parts
BCN3D BVOH

Properties

  • Water-soluble material

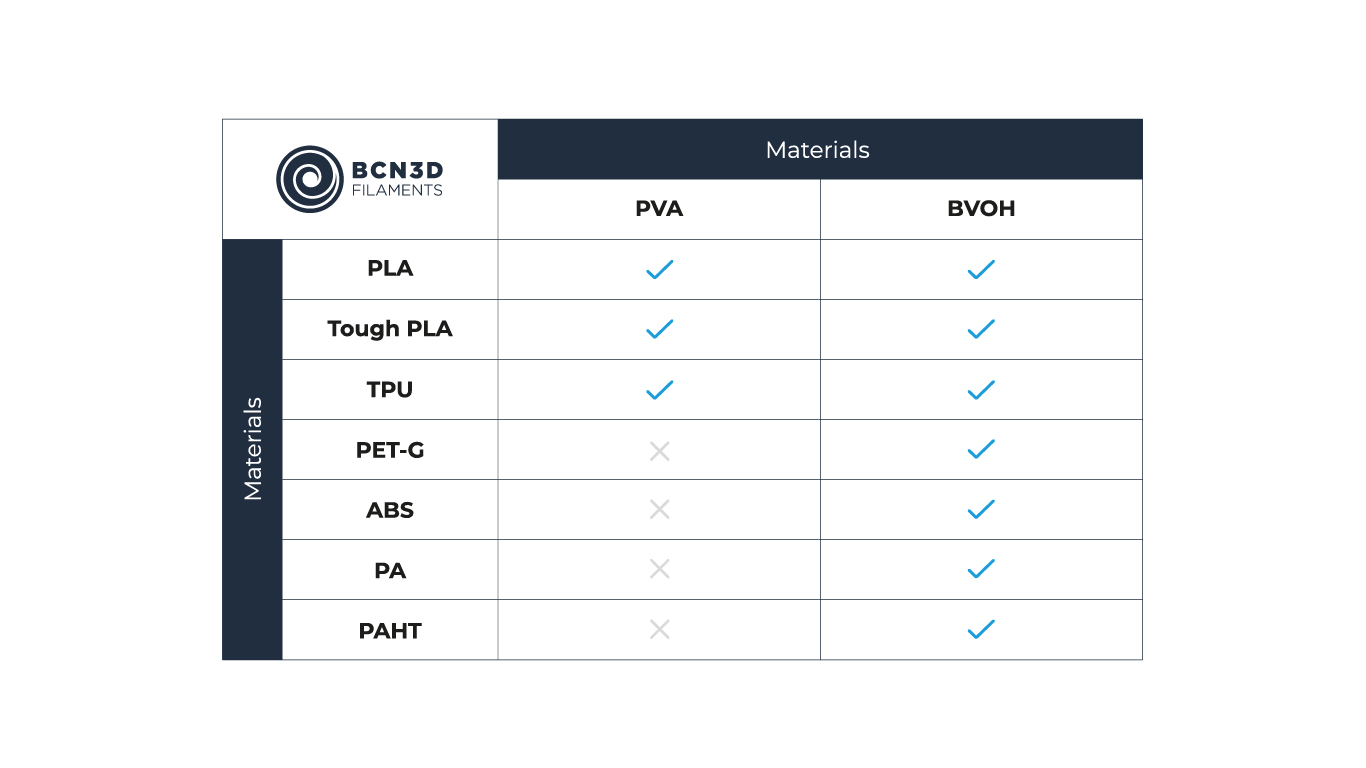

  • Compatible with PLA, Tough PLA, PET-G, TPU 98A, ABS, PA and PAHT CF15
  • Fastest dissolution
  • Easy to remove inside small parts
  • Less clogging issues
  • Highly hygroscopic

Datasheets:

Download safety and technical data sheets

Webinar

Use support materials to expand your 3D printing horizons

Our hosts and 3D printing specialists Álvaro and Jess give us the lowdown on all the different benefits that arise from using support materials, and all the different ways in which they can be implemented.

Watch video

White paper

Your Extensive Guide to the Properties of 3D Printing FFF Filaments

This white paper dives deep into physico-mechanical properties and impact, heat and water resistances, by evaluating the performance of every material in the BCN3D portfolio.

Learn more

How to print

Printer setting

Extruder temp.
190ºC - 210ºC
Bed temp.
45ºC - 90ºC
Cooling fan
50% - 100%
Speed
20 mm/s
Min. layer height
0.15 - 0.4 mm

For BCN3D Stratos users:

Get a proper printing profile for BVOH using the ones integrated into the BCN3D Stratos. Download the latest version of BCN3D Stratos.

Bed adhesion:

To ensure good bed adhesion use Magigoo.

Recommendations:

  • Store it in an airtight container with desiccant.
  • Dry filament before printing. Place it in a hot air dryer or vacuum oven at 60ºC for 4 to 16 hours.
  • Calibrate the printer to ensure a reliable adhesion between materials and a proper alignment of both printheads.
  • Clean the hotend after long prints or when switching material.
